Artikelnummer: 302 TORCH

Beställningsvara

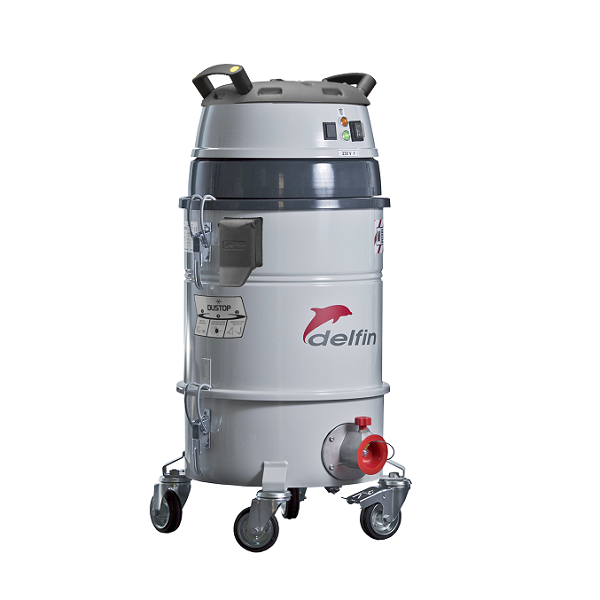

Rökavskiljare 2,3kW 1-fas Delfin

19 283 krEx.moms

24 103,75 krInkl.moms

(st)
close

Kontakta oss för offert

, GTIN:

Produktinformation

Sturdy and easy to transport, TORCH industrial vacuum cleaner has been conceived to remove possible welding fumes from the source,
by keeping fine dusts concentration to the extent permitted by law.

WELDING FUMES SUCTION

The suction of welding fumes in a mechanical workshop contributes to a healthier work environment, especially if directly at the source.
The suction at the source is the best way to collect and vacuum welding fumes and so to safeguard welder's health.
Torch 302 has a start and stop device which allows to power on/to stop the machine without the intervention of the welder, who will be free to only focus on using the welding torch.

Compact and mobile
Easy filter replacement
Optional articulated arm to suction in a
restricted area
Suction directly from the MIG/MAG welding
torch

OPTIONALS
ABSOLUTE HEPA FILTER /H14
ACTIVATED CARBON FILTER
OTHER VOLTAGES AND FREQUENCIES AVAILABLE UPON REQUEST
EXTRACTION ARM (TA.0678.0000)

    Voltage V – Hz 230 – 50
    Power kW 2,3
    Max water lift mmH?O 2.500
    Max air flow m³/h 180
    Suction inlet mm 50
    Noise level (EN ISO 3744) dB(A) 74
    FILTER UNIT
    Prefilter Spark trap filter
    Filter Type Cartridge
    Surface – Diameter cm²-mm 7.500 – 245
    Material – Efficiency IEC 60335-2-69 Polyester – M
    Cleaning system Dustop
    COLLECTION UNIT
    Discharge system
    Capacity lt 13
    VOLUME
    Dimensions cm 40x50x86h
    Weight kg 25
